Nautilus Gears

My first 3D printable design, these nautilus gears are based on logarithmic spirals.

Available for purchase on LinkShapeways, or if you have your own printer make your own at LinkThingiverse.

The gear profiles were generated using a Maple script for which full credit goes to the Linkoriginal author.

Tools Used: SolidWorks, Maple

In the News: LinkMAKE Magazine, LinkPopular Mechanics Nautilus Gears Printed via Shapeways.com

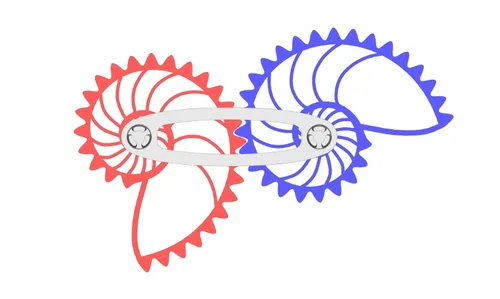

Nautilus Gears Printed via LinkShapeways.com Nautilus gears render.

Nautilus gears render. Model avilable via Thingiverse .

Model avilable via LinkThingiverse.

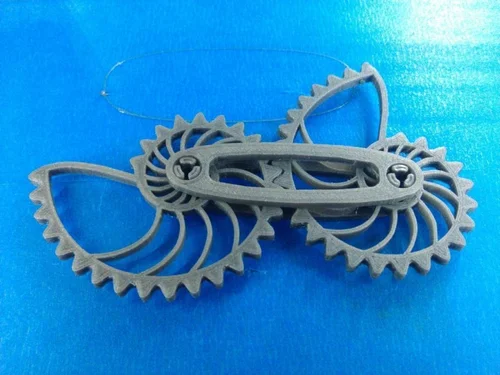

Model printed via Shapeways.

Animated mechanism.
